Automatic Lubrication

With an automatic greasing system all grease points of the trailer are greased automatically with the correct amount of grease.

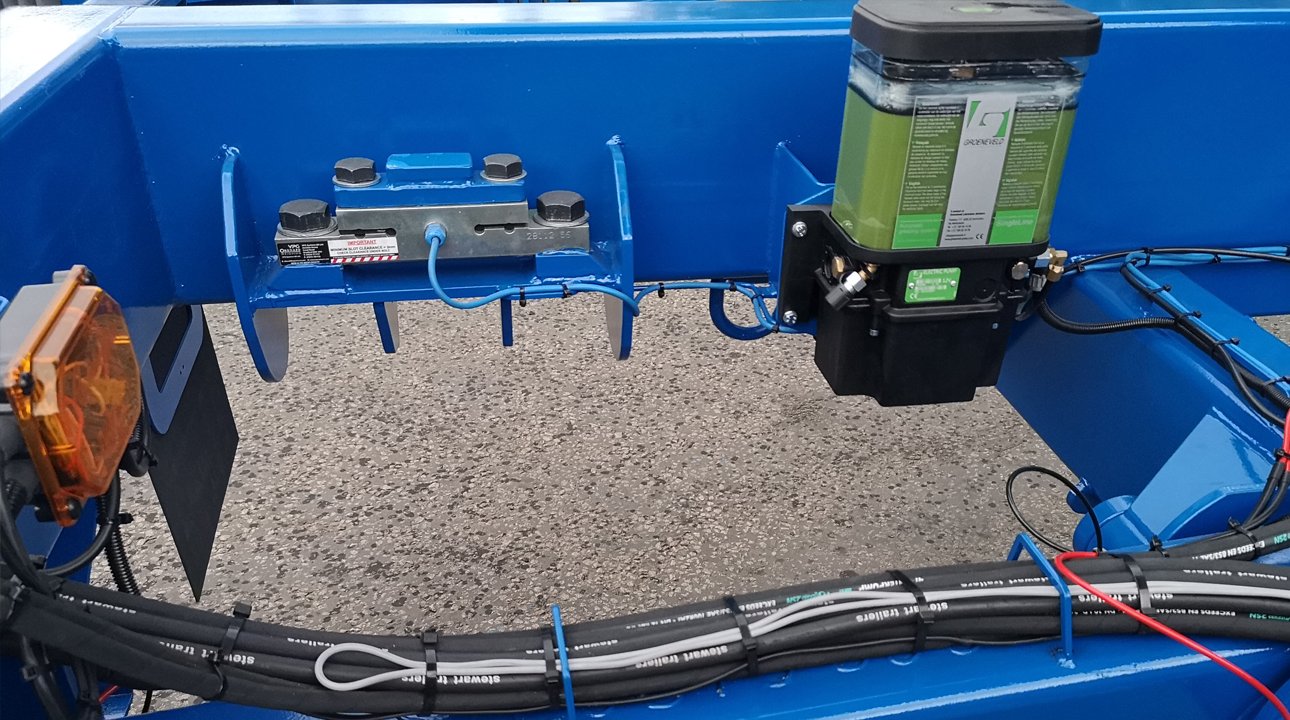

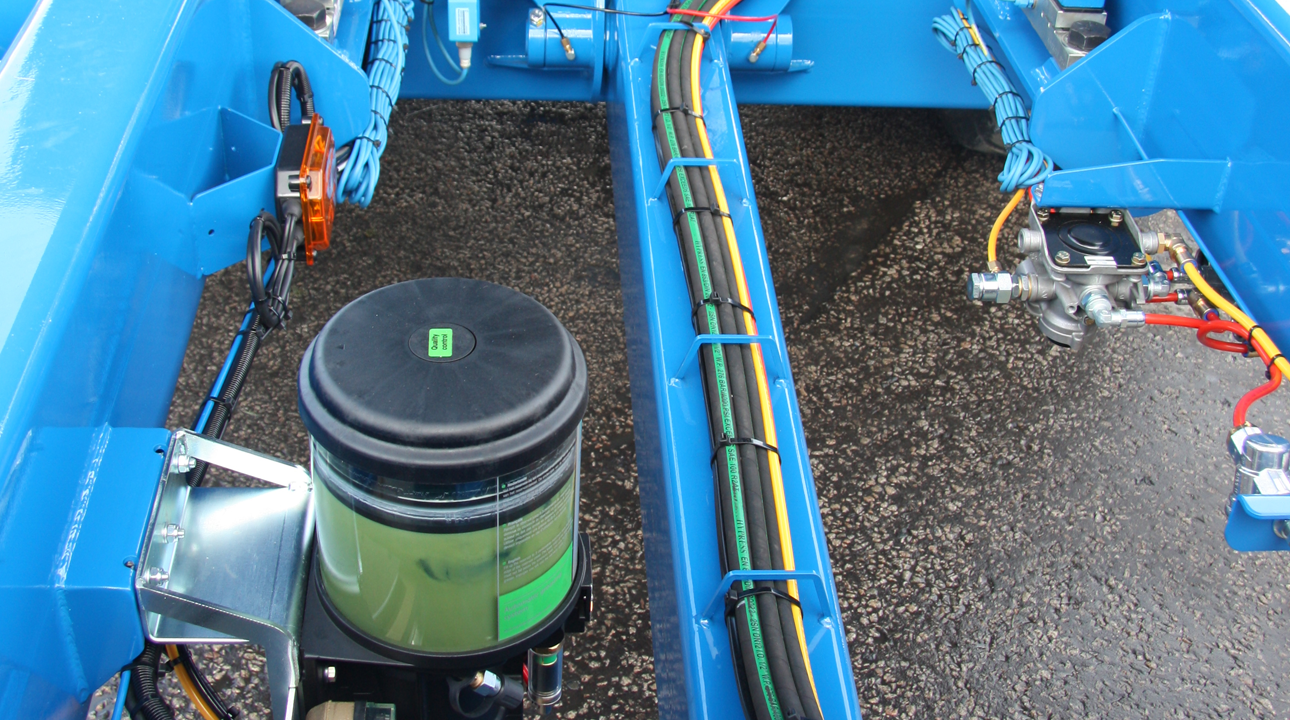

The system consists of pump with an integral reservoir, a primary line with one or more distribution blocks, metering units, secondary lines and connectors. Grease is transferred from the reservoir by the pump, via the primary line to the distribution blocks.

If the trailer has air brakes, the greasing unit will be operated by compressed air, with grease being dispensed after a fixed number of applications of the brakes, otherwise, an electric pump with a timer is used. Both systems can be adjusted to make sure the amount of grease being sent to the components is appropriate for the work being done.

As greasing takes place while the trailer is in operation the applied grease is spread optimally over the whole surface to be greased. The greasing system requires no input from the operator other than to periodically replace the grease in the reservoir.

Features

Optimum Lubrication

  • Optimum lubrication and sealing of all lubrication points

Quality

  • Thanks to the relatively low work pressure, the quality of the grease is preserved

Maintenance Free

  • The key components are made of solid brass in order to ensure a long and maintenance free lifespan

Follower Plate

  • The follower plate will ensure that all the grease in the reservoir is used, that the grease level is visible and that oxidation is prevented, to assure the quality of the grease

Unique Metering Units

  • The unique metering units offer an exact and adjustable amount of grease per lubrication point

Filler Coupling

  • Filler coupling with filter in order to prevent contamination of the grease during filling

Pressure Switch

  • Equipped with a pressure switch in the main line system as standard, a break in the main line is immediately detected and reported
